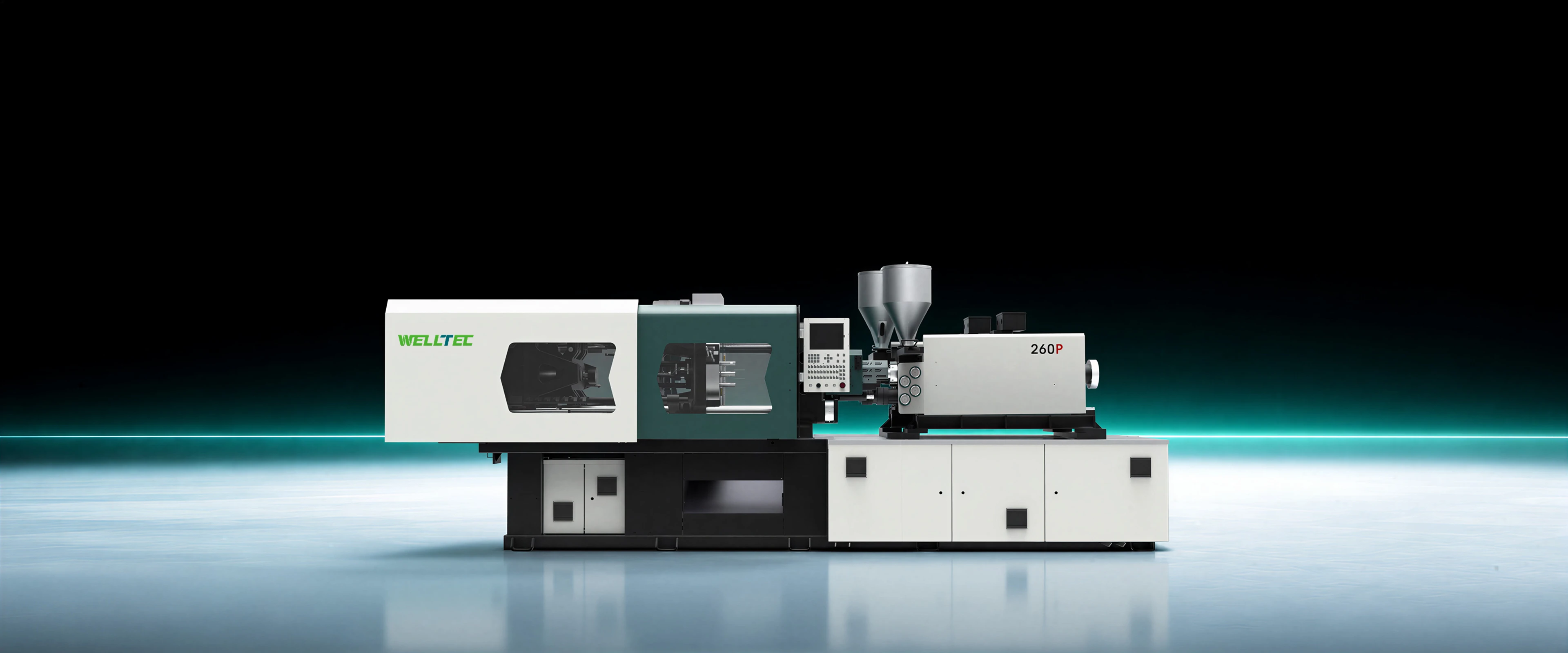

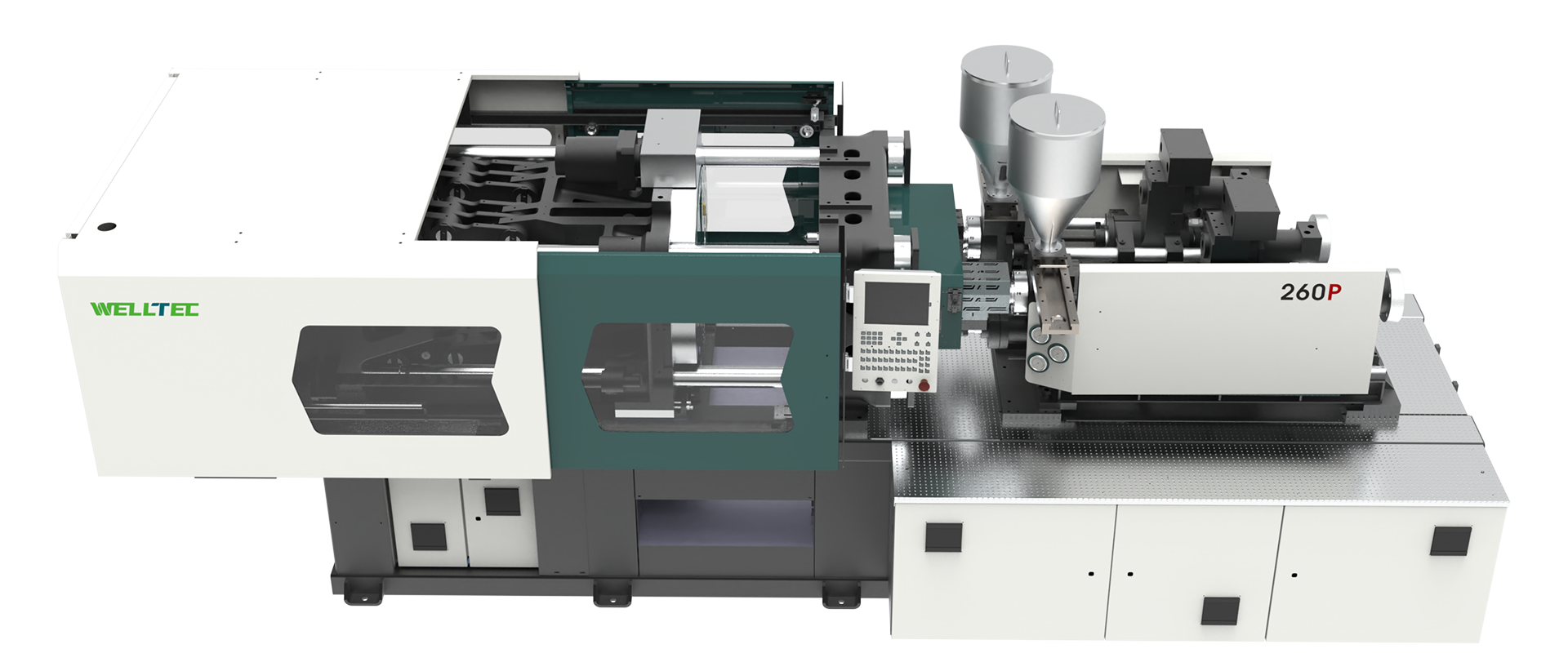

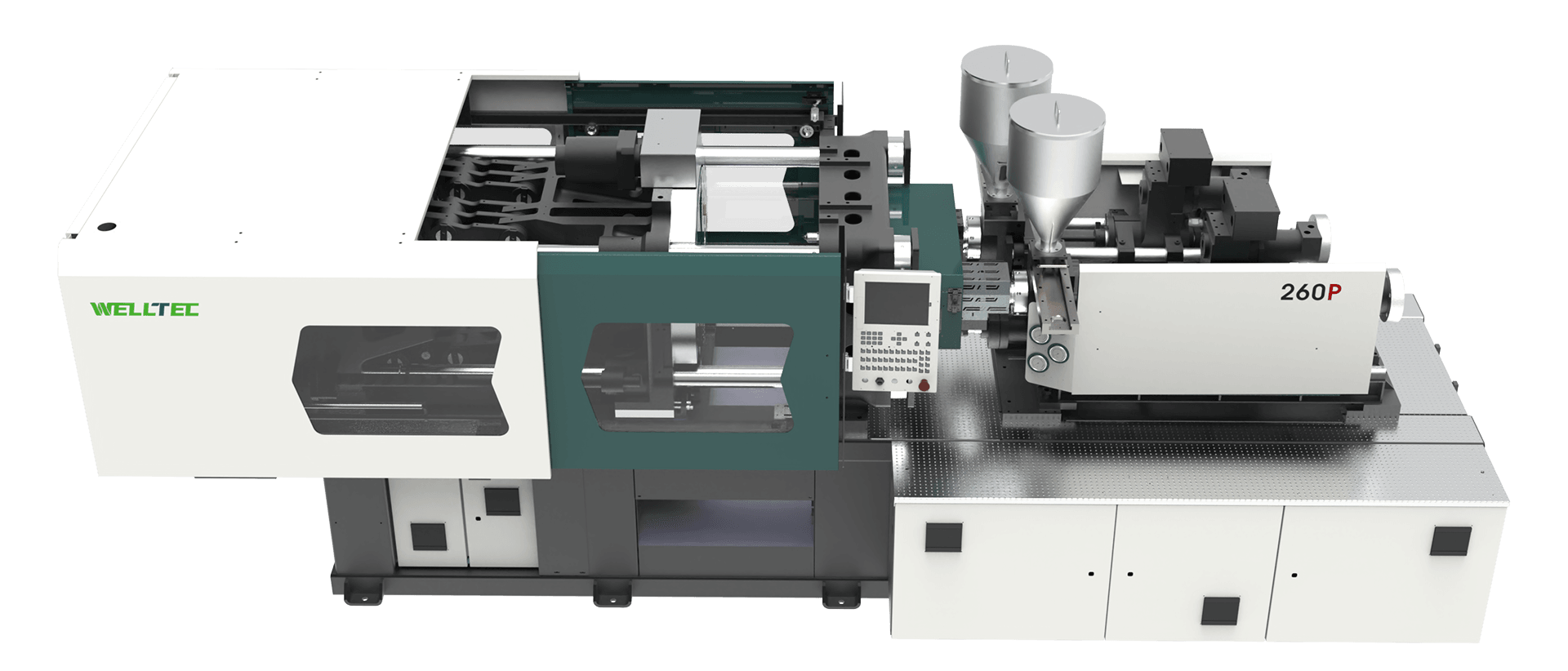

P Parallel Multi-Material Injection Molding Machine

For automotive lamps, two-color housings, and other two-color or two-material products. Independent parallel injection units with a 180° servo rotary table enable one-cycle two-color or two-material molding.

Key Specifications

Clamping Force

1600-7500 kN

Injection Volume

124+61-1986+707 cm³

Platen Size

965*690-1910*1485 mm

Tie Bar Distance

710*345-1270*850 mm

Screw Diameter

30-85 mm

Features
